In the first of a two-part story, Simon Eccles talks to some of the developers of a new generation of high speed, high volume digital corrugated printing presses.
Since this website last took an in-depth look at digital corrugated production systems two years ago, the number of high speed systems on offer has expanded rapidly High speed sheet or web fed production installations are still rare as yet, though the earlier generation of modified multi-pass flatbeds are relatively common.
The market potential is huge though: global production of corrugated board is predicted to exceed 260 billion square metres by 2020, growing at a rate of about 5% pa (ICCA Corrugated Statistics). The cost and environmental advantages of producing smaller volumes of corrugated board quickly and on-demand is driving the development of specialist digital printing systems.
According to Smithers Pira’s “The Future of Digital Print for Packaging to 2018” report (in 2013), the conversion of corrugated board was expected to increase by over 22 million tonnes between 2014 and 2019, with almost 70% of this increase likely to be in flexo printed materials and a 22% in litho printed applications.
However, the highest growth rate will be in digital printing, which was predicted to improve at an annual average of 7.4% from 2014 to 2019. This follows a historical growth of 13.5% annually from 2009 to 2012.
FESPA UK Summit
So it’s an opportune time to take a look at where the sector is up to. On 5 October 2016 FESPA UK is organising a summit on Digital Corrugated, to be held at the Williams Conference Centre at the Oxfordshire HQ of the Williams Formula 1 racing team. To sign up for the event, visit http://firstname.lastname@example.org
There will be presentations on behalf of packaging software and cutting table supplier Esko, brand agency Studio Minerva, corrugated producer Swanline Print Group and corrugated materials supplier Smurfit Kappa. Dave Brunton, a publisher who specialises in packaging, will also give a presentation and chair a discussion.

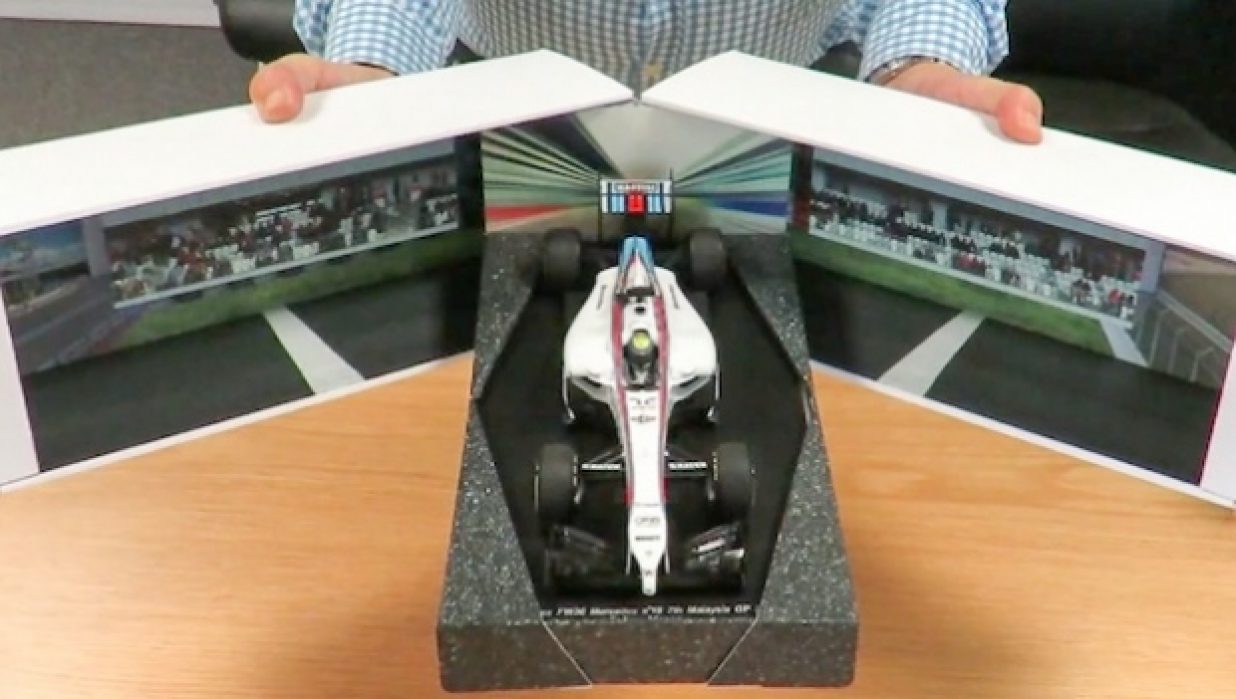

In support of the summit, Swanline Print, a UK corrugated printer, has designed and digitally produced a presentation box for a large 1/18th scale model of a Williams race car. One of these will be given as a prize at the event for the fastest driver in the Williams F1 simulator.
The box is a clamshell design with relatively plain white exterior, printed with the FESPA UK and the Digital Corrugated Seminar logos. Inside is another matter: the box opens horizontally to push forward a tray holding the model car, with full colour images of a racetrack and grandstands on the inner surfaces. The open box forms a colourful display stand for the model.
The complex structure was designed and previewed in 3D by Swanline using Esko software, then printed on one of its pair of HP FB 10000 flatbed inkjet corrugated printers. The boxes were cut and creased on an Esko Kongsberg flatbed digital cutting table, and hand assembled to hold the model car. Finally a printed paper chequered flag sleeve was slipped over the carton to hold it shut.
Speaking to FESPA UK’s Peter Kiddell, Nick Kirby from Swanline Print said that the aim was to show delegates to the summit the complete process from design concept right the way through to short run production.
He said his company handles 50% packaging and 50% point of sale. “The correlation between the two industries isn’t always there, but the thought processes and the equipment very much are,” he said.
“So the opportunity to expand into short run packaging if you are a point of sale house, is absolutely there. You have to have a slightly different mind-set, different skills, and the ability to work with different substrates. But ostensibly the skill base within those point of sale companies – and typical FESPA members – do have the ability to get into the packaging sector.”
High speed potential
The potential for higher throughput systems is big but still largely untapped, according to Sean Moloney, product manager for Sun Automation’s CorrStream high volume single-pass sheet fed digital printers.
The first commercial user is HSG Packaging in Bradford UK, which installed a Beta press early in 2016 and is now running it in production. The major market will be boxes, Moloney says, where numbers far exceed the use of corrugated for display and PoS applications.
“The corrugated box industry is huge, second only to publishing,” he states. “When it comes to how many boxes are printed, the market is certainly big enough. The question is how much of that market will give a critical mass, to maintain margins on digital print.
“The place for what is currently a high margin opportunity, digital close-to-market on-demand printing, is relatively unknown at the moment in box making. There will also be markets in corrugated displays and on-shelf products, plus an unknown entity of using shipper packages to deliver to people’s front doors through the mail order market.”
However, he reckons that the display market alone can’t justify investment in high capacity digital printers. “The display companies are perfectly happy with flatbeds as they don’t need more capacity (or the price).
This is the problem they’ve got. For industrial you need to go for the 95%, ie transit and on-shelf. Box makers want to optimise and increase margins on the same box. They don’t want to become a graphic house for PoS and display.”
Bobst’s digital corrugated line uses its own materials handling with Kodak print heads.
Bobst has built three digital corrugated lines so far. One is with Model AG in Weinfelden, Switzerland and the other is at Schumacher Packaging in Ebersdorf, Germany. A third has been built for a so far undisclosed site.
“We see much broader opportunities for digital than it has covered up until now,” says Jakob Bovin, product marketing director for the Digital Printing Corrugated Board business unit. “With high-volume digital printing technology, the converter is able to address their existing work, customer base and segments, but with a technology that’s better suited to deal with gradually declining run-lengths, as seen in many markets.
“Digital is a complementary technology and doesn’t outright replace existing flexo or litho-laminate technologies, which will remain better suited to certain types of work and run lengths. Having said that, the essential differentiator of digital is that it brings more flexibility to the brand-owners.”
“For instance, they can consider changing existing generic products into regionalised products; they can reduce inventories and waste; and they can have much more flexibility in last minute design changes when they launch campaigns.”
Bobst also said it is working on a digital carton printing technology, which apparently has a lot in common with the corrugated line.
Image: Visitors to a corrugated event at KBA last year saw the 2.8 m HP T1100S in action.
In the past decade HP has mostly produced modified HP Scitex UV multi-pass flatbed inkjets for corrugated, plus a version of its big single-pass inkjet web press for liner paper.
This changed in 2015 when HP announced the results of its collaboration with KBA to produce a huge and fast 2.8m wide corrugated web press called HP Page Wide Web T1100S. This runs at up to 183 linear metres per minute, or 30,600m2 per hour.
The first one is running at DS Smith Packaging at its Featherstone site in the UK. DS Smith also has an HP T400 inkjet web press at its Belper site in the UK, for pre-printing liner paper for corrugated.
“We selected the new HP Page Wide Web Press T1100S as the next step in our ground-breaking digital pre-print programme,” said Stefano Rossi, CEO of DS Smith Packaging Division.
“Our co-development with HP has resulted in the first digital machine able to print at the speed and width we need for high-volume corrugated production. It will provide our customers with unprecedented short-run flexibility and quality consistency.”
This year, HP announced the launch of the Page Wide C500, a compact single-pass sheet fed corrugated press, probably for 1.8m wide boards. Shipping is predicted for 2018, but test sites will run in 2017, including UK company Cepac. HP is also working with Smurfit Kappa on development.
Amir Shalev is corrugated segment manager for HP Scitex Industrial Presses, which produce the flatbed models. Like other developers, he says that the corrugated box market far exceeds that for display work. “Because there are so many more boxes in the world, then the mix of applications is leaning more towards boxes. However we will be installing in places where the customer will be printing both merchandising displays and boxes.”
How does he see the markets for flatbed UV corrugated printers, versus that for the future C500 (which uses a water-based ink)? “The way I look at the market is that some corrugated converters have specialised plant for short run applications, such as Swanline Printing that has two of our flatbed presses,” he says.
“These are companies that are very versatile and fast to market, but they are not very high volume producers. As you go up in volume there are customers that have higher volumes and longer runs, and they may do some display, but their operations are geared towards productivity and cost. Examples are DS Smith, Smurfit Kappa, some of the smaller private companies. This type of company is where we see the C500 going.”
Will the fast high volume presses go to existing corrugated specialists who today use flexo or litho presses, or will they encourage new players? “I see some indications in both directions,” Shalev says.
“Corrugated converters surprisingly are asking about the ability to print on plastics and expand their portfolio offerings, and on the other hand I foresee PSPs who print some corrugated leveraging their know-how and abilities in digital print and workflow, and working with the flexibility of, for example web-to-print, and touching with consumers for higher margins.”
Like HP, EFI has long seen some of its large flatbed UV inkjet printers being used for short run corrugated board printing. In June this year, it announced Nozomi C18000, a fast single-pass aqueous ink printer that’s dedicated to corrugated work in higher volumes. It’s built in Spain by the EFI Cretaprint factory, which previously has concentrated industrial inkjets for ceramic tiles.
“When we look at Nozomi what I think is interesting is that the worlds are colliding,” says G Scott Wood, a senior product manager for large format at EFI.
“There used to be a pretty clear segmentation and decision path about when you’d use a piece of digital equipment versus analogue. High speed digital is clouding the waters a bit. You don’t really need to make a choice, it’s a technology that allows scheduling to be very flexible, particularly when you get into the big box independents.
“They’re looking at how it fits into the overall business and how to be profitable. The original idea was to get into flatbed to do short run work without having to make plates or screens. That dynamic is changing.”
As with other digital print applications, Wood says that being able to vary the image doesn’t always mean small volumes. “For 10,000 identical pieces you’d use flexo. But you can do high value short run work digitally. A 10,000 piece order now might be broken down into chunks of 2,000 pieces that are each specific to a demographic, or to a sports team, or to a couple of cities, with unique artwork.”
“You’ll still have 10,000 pieces but there’s more margin attached. This is what the corrugator and order fulfilment guys are looking for. It’s a way to pad their bottom line while giving the brand managers what they’ve been asking for.”
Durst presented its fast digital corrugated board press last June.
Durst is another company that has offered multi-pass UV flatbed printers for corrugated sheet work, but this year it demonstrated the Rho 130 SPC (single pass corrugated) sheet fed press, with an all-new technology running at 120m per minute on 1.3 x 2.5m boards. Peter Bray, managing director of Durst UK, said the plan is to deliver units in Q1 2017.
“The packaging market for us is very important,” he said. “Our target market is second-tier packaging, which now has nearly all been flexo printing. Only a very small percentage of packaging is digital. Yet we’ve seen how ceramics and textiles have already adopted digital. We see this as complementary to flexo – it won’t kill it off.”
